Price List - Propellers

Go to Product Prices

Conditions of Sale

Large model /TOC Aerobatic     Pylon     F3D     F5D   C/L       F2B

Combat    FF     USRA Pylon



 Large Model and TOC aerobatic                                    $AUD                 Pics
*60cc 21 x 11 G/F 50
*70cc 22 x 13 pusher G/F 60
*70cc 22 x 13 G/F 60
*140cc 28 x 14 G/F 70
*180cc 31 x 12 G/F 80
*70cc 22 x 13 hollow C/F 180
*140cc 28 x 14 hollow C/F 220
*180cc 31 x 12 hollow C/F 260
Torque washer (anti-slip)   30
*17.7 x 14 C/F 60

* The above aerobatic props are supplied balanced and ready to fly
* Shipping EMS: US $20 per prop minimum
* Props CNC drilled to your mount pattern



 Pylon

 $AUD Pics

 Now in production from CNC metal moulds are the following carbon-fibre/epoxy props. Sections are NACA 4-digit except where noted.
Spinner/nut 25mm (FAI legal) 7.75 Aluminium Nelson and MB40 (required for Turbo 02) 30

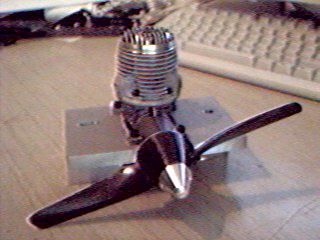

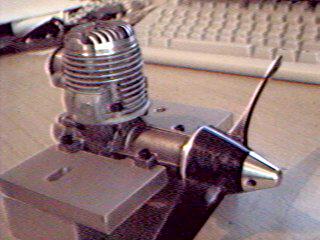

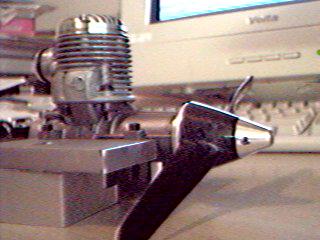

QM400 Turbo 01  7.1 x 7 integral 1.5" spinner C/F 30 QM4001
QM4002
QM4003
F3D14 QM400 Scimitar C/F 20
QM02  21QM  6.6 x 6.3 C/F 15
QM02V2  QM  6.6 x 7 C/F 15
QM02V3  QM  6.5 x 6.5 C/F 15
QMD01  QM  6.7 x 6.2 integral 1.5" spinner C/F 20 QMD01a
QMD01b
1/2A Single blade 5.9 x  4.8 counterweight C/F 07
1/2A Single blade 5.8 x  5.0 counterweight C/F 07
Counterweight rear mount Brass 10

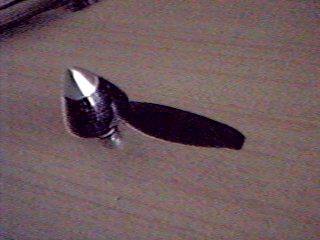

1/2A Single blade integral spinner  5.9 x 4.8 C/F 10 HalfA02
HalfA02
1/2A Single blade integral spinner  5.8 x 5.0 C/F 10
Above 2 require cone nuts (OS CZ11 or Enya) C/F 20
AT6-01 Midwest AT-6  1.2 cu. in.  16 x 8.5 C/F C/F 35
F3D Redfang 1,2,3 series C/F 30 More info
Spinner Nut FAI legal   30
Shaft Stud for MB40   30



F3D $AUD Pics
Ravenswing 01BT C/F 40
BT02 C/F 40
BT03 C/F 40

Archive to early F3D props.



F5D $AUD Pics
F5D01 single blade C/F 5
Counterweight C/F 30



 C/L $AUD Pics
Bendix 01  9 x 6 C/F 20 Bendix
Bendix 02  8.5 x 6.5 C/F 20
Bendix 03  8.5 x 7 C/F 20
F2C01V2 toughened roots F2C T/R  6.3 x 6.6 NACAxxxx C/F 15
F2C02V2 toughened roots F2C T/R  6.3 x 6.4 NACAxxxx C/F 15
F2C10 C/F 15
8 x 8 Tornado Plasticote replica F/G 10
8.5 x 8  C/F 20
GY01 Goodyear  6.8 x 4.2 C/F 15 Goodyear
GY02  6.5 x 5 C/F 15
GY03  6.5 x 5.5 C/F 15
6.1 x 5.5 (F2C hub) C/F 15
21 Speed and B T/R  6.6 x 6.5 2-blade C/F 15
21 Speed and B T/R  6.6 x 7 2-blade C/F 15
21 Speed single blade 180 x 180 C/F 20
21 Speed single blade 180 x 195 C/F 20



 F2B $AUD Pics
10 x 5 Paddle blade C/F 30 10by5paddle
11 x 5 Petal blade C/F 30 11by5
11 x 6 Petal blade C/F 30
11 x 7Petal blade C/F 30
11 x 8.5 Petal Blade C/F 30
10 x 6  C/F 30
10.5 x 6 C/F 30
11.5 x 6 C/F 30



 Combat $AUD Pics
8 x 5 (.36) C/F 10
8.4 x 5.3 (.36) C/F 10
F2D 6.25 x 5.3 (prototype) C/F 5
9 x 6 (.40) C/F 20



 FF $AUD Pics
7 x 4 C/F 8 7by4
7 x 3.5 C/F 8
7 x 2.8 C/F 8
6.5 x 3 C/F 8
8 x 3.5 G/F 8
8 x 4 G/F 8
9.5 x 4 G/F 15



 USRA Pylon $US Pics
18 x 16 F1 C/F 130
24 x 34 CNC (One only) C/F 320 See below

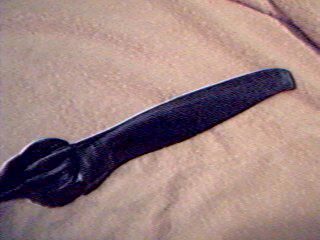

24 x 31 CNC C/F 350 Image 1
Image 2

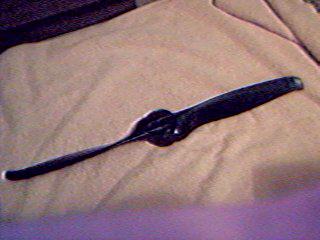

Image 3
18 x 20 F1 G/F
World Record Holder		 100
18 x 20 CNC Version 1 C/F 130
18 x 20 CNC Version 2 C/F 130



 Conditions of Sale

  1. No stocks are held, props are made to order

  2. All orders must be pre-paid

  3. Custom CNC moulding available, ask for quote

  4. Vortex theory computer blade element analysis of existing prop designs available

  5. Minimum induced loss computer design available, now featuring inverse blade element analysis, spinner/cowling inflow velocity correction.

  6. Prices do not include postage and packing

  7. Payment in advance by VISA and Mastercard only.

  8. We may be expensive but we're slow !

  9. F3D and Giant Scale propellers a speciality.

  10. Allow for lead times , we are always booked out

  11. Custom pusher props available.

  12. Custom wing and tail CNC metal moulds, ask for quote.
